Description
Use
Mounting Sleeve OM-2 is used to mount the signalling devices manufactured by the W2 company in suspended ceilings, coffered ceiling, and in plasterboarded spaces. Thanks to the use of such a sleeve, the user is able to “mask” parts of the signaling device. Only the signal-giving optical, acoustic and acoustic-optical part of it remains visible.The use of mounting sleeves is very useful in premises where the aesthetic aspect is particularly valuable (such as hotels, museums, classrooms).
The OM-2 mounting sleeve allows mounting only of the internal visual alarm devices of the SO-P8 series. The mounting sleeves are made of steel coated with white or black powder paint.
Additional
Mounting method
To install the mounting sleeve OM-2 cut a hole with a diameter of 133 mm (using a hole saw) in the suspended ceiling. Then remove the spring placed at the top part of the sleeve, and place the selected signaling device in the sleeve as shown on Figure 1. After placing the signaling device, the spring should be returned into place, at a height best suited for mounting the given alarm device. Pressing onto the side springs, insert the sleeve into the mounting hole .
OM-2:
Position 2: SO-P8 visual alarm device

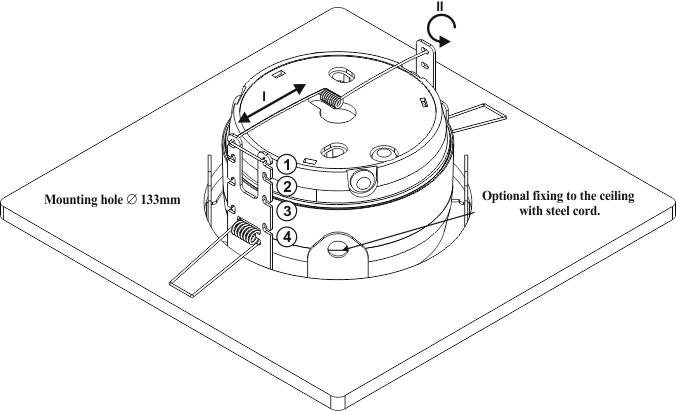

Figure 1. Installation of SO-P8 visual alarm devices in OM-2 mounting sleeve
Notice If necessary, additional suspension of the signalling device with a steel cord is possible as well.
