Description
USE

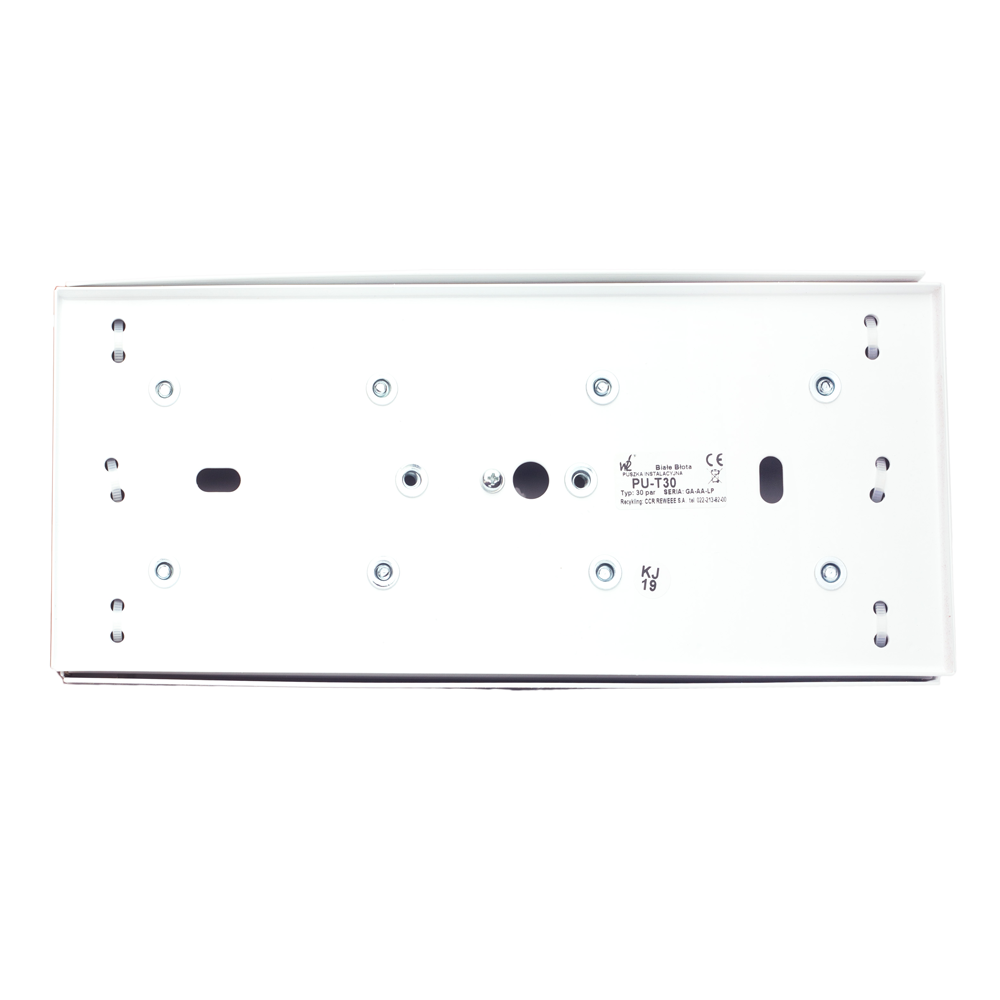

The PU-T30 cable junction box is destined to be used in switching systems, e.g. telecommunication systems
Construction
The blocks soldered onto the printed circuit board are used for connecting installation wires.
This box contains two printed circuit boards, each fitted with 15 pairs of terminal blocks, making a total of 30 pairs. The incoming and outgoing wires are secured with cable ties, and rubber grommets provide protection against dust.
Notice The side view of the cable junction box shows an entry of conductors covered with rubber. This rubber should be incised depending on the thickness of applied conductor.
