Description
USE

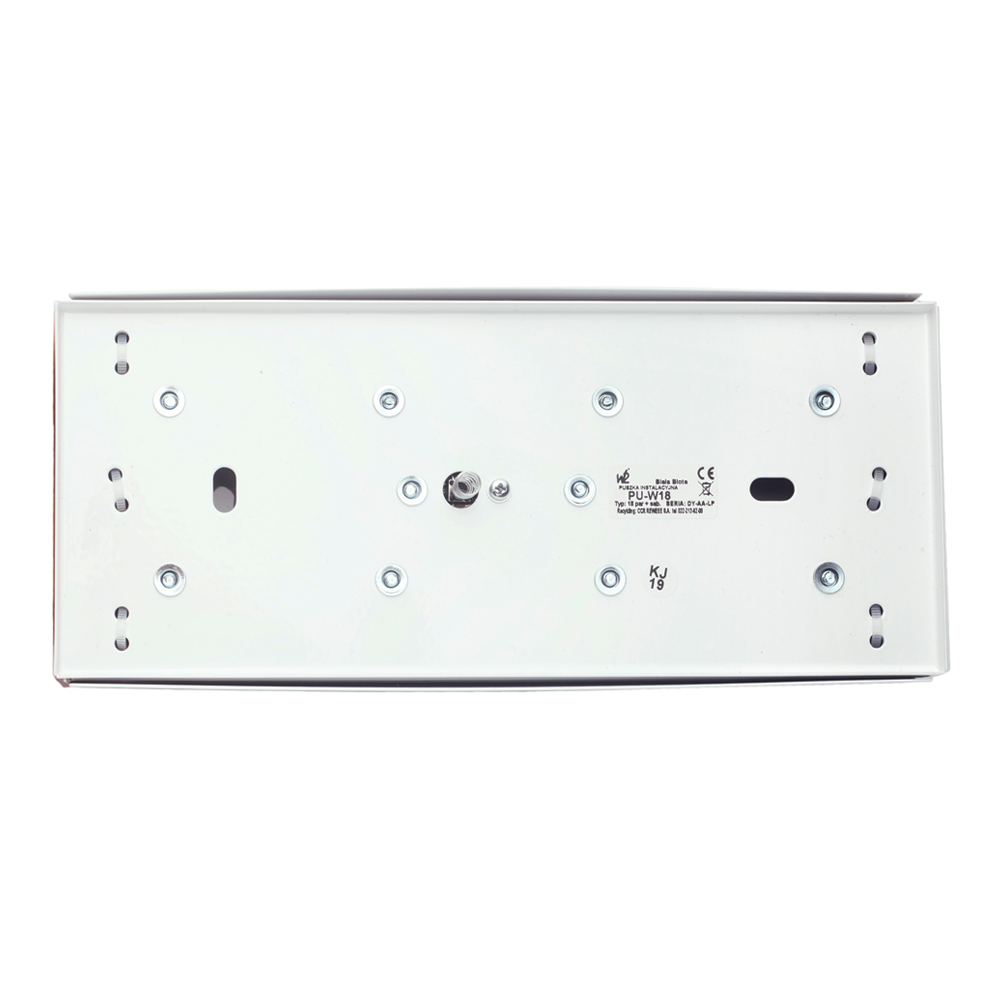

The PU-W18 universal cable junction box is applied in burglar alarm systems.
Construction
The blocks, which are destined to connect conductors, are soldered into the printed-circuit board. In the box there are 9 pairs of terminal blocks on each of two printed-circuit boards, that is 18 pairs in total. The conductors which are going into and out of the box are immobilized with clips whereas rubber protects against dust. There is sabotage from the side of the wall and the cover. A separate printed-circuit board equipped with a thread coupling was used to overlock sabotage conductors.
Notice The side view of the cable junction box shows an entry of conductors covered with rubber. This rubber should be incised depending on the thickness of applied conductor.
