SA-A1 acoustic alarm device

sound output at 1 m (version with sound module)

Datasheet

W2 - SA-A1 datasheet

The SA-A1 acoustic alarm device enables generation of five acoustic signals. Releasing an acoustic signal is done through connecting the appropriate control input to GND.

Description

Use

The SA-A1 acoustic alarm device is used in industrial automation and event signaling systems.

Construction

The SA-A1 acoustic alarm device enables generation of five acoustic signals. Releasing an acoustic signal is done through connecting the appropriate control input to GND. Additionally, the signalling device has got the input enabling operation in the lowered volume mode.

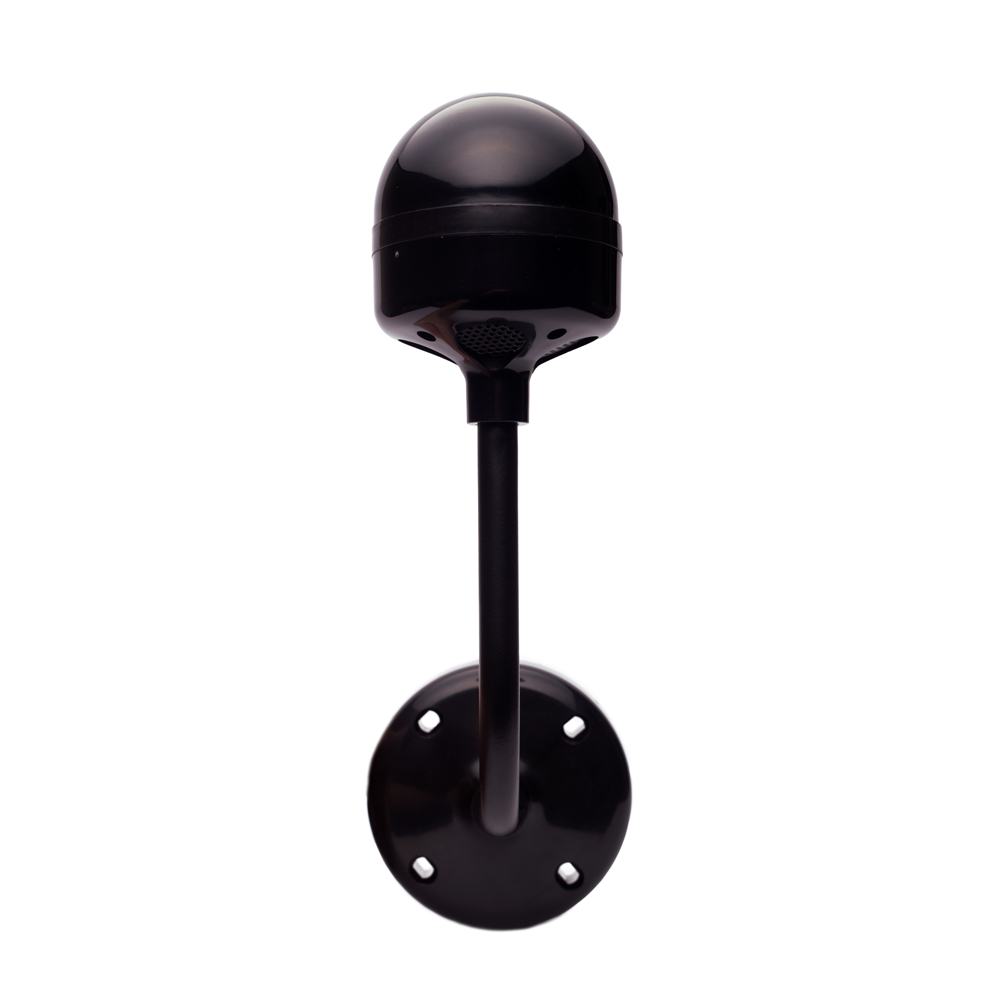

The casing of the signalling device is made of plastic material. Elements are permanently joined. The sound source is a piezoceramic transducer. The signaling device has got a straight or angular fastening to the ground/wall.

Technical data

Type	for automatics
Model	sounder
Supply voltage	18..32 V DC
Current consumption at 24 V DC	Operation in the full volume mode <110 mA Operation in the not full volume mode <25 mA
Sound output at 1 m (depending on the type of audible signal), for the voltage of 24 V DC	Operation in the full volume mode Min > 88 dB Max > 99 dB Operation in the not full volume mode Min > 69 dB Max > 82 dB
Weight	~260 g
Range of working temperatures	-10°C ÷ +55°C
Contamination degree	3
Ingress protection	IP54
Conductor cross-section	2,5 mm²
Housing	plastic
Housing colour	black

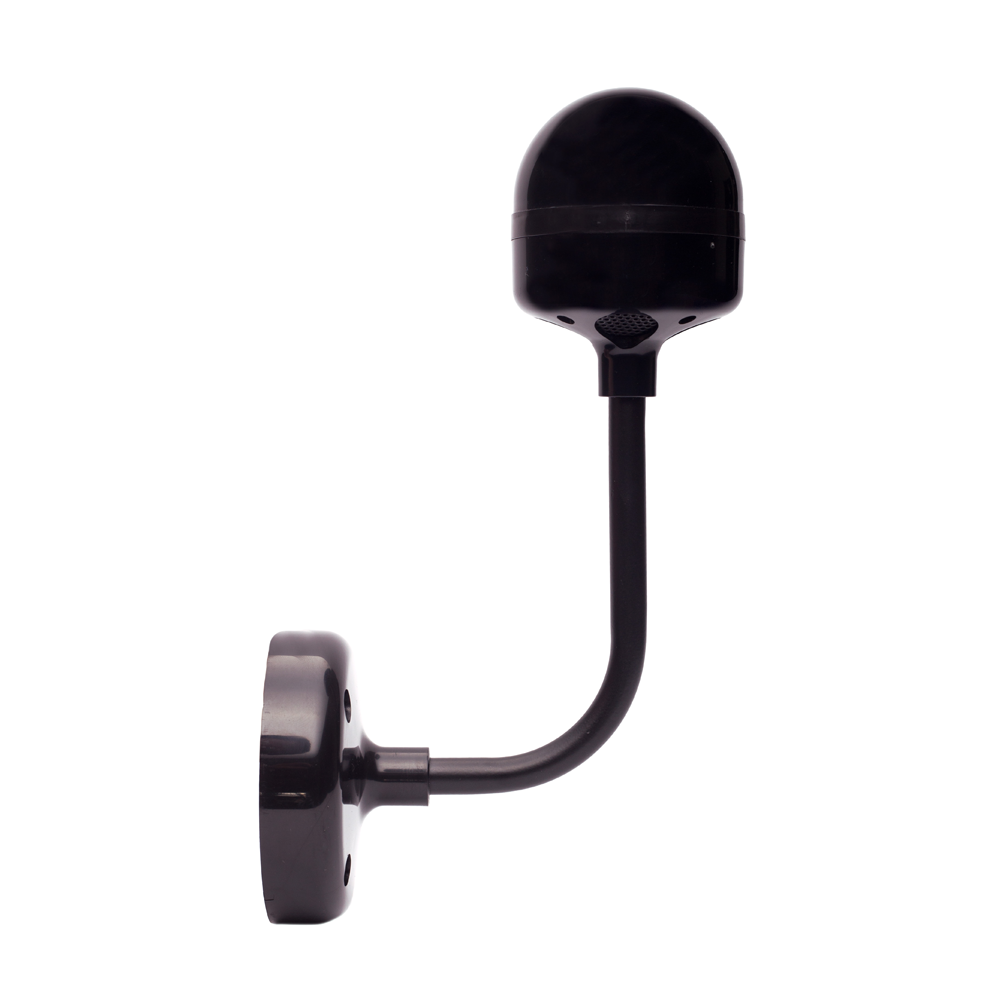

Mounting method	straight or angled mount

Additional

Control

The acoustic signal is released through connecting the appropriate control input to GND. The signal is generated as long as the signalling device input is connected to gnd. The electronic system of the signalling device has got the built-in priority mechanism, it means that in case of occurring two signals simultaneously, the system will start generating the signal of higher priority (the highest priority has got the input S1).

The signalling device SA-A1 can also operate in the lowered volume mode. In case when the input VOL will be connected to gnd, the electronic system built-in the signaling device will reduce the volume of emitted sound. This state will last as long as the input VOL of the signaling device will be connected to gnd.

Control input	Acoustic signal
S1	Increased frequency from 2400 Hz to 2850 Hz during 0.14 s
S2	Frequency 2850 Hz: serially 60 ms of sound, 120 ms of silence
S3	Continuous sound with fixed frequency (300 Hz)
S4	Serially sections of 0.5 s with the frequency of 800 Hz, 700 Hz
S5	Frequency 3000 Hz, 3 bundles of pulses with the time duration of 32 ms each one (sound and silence of 16 ms) separated with the silence of 0.5 s, and then 1.5 s of silence

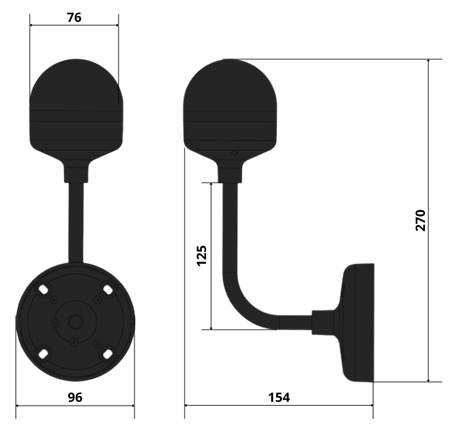

Dimensions
