Description
END OF PRODUCTION – available while stocks last
Use
SA-A2 acoustic alarm device is intended for applications in industrial automation systems.
Main features:
- adjustable volume,
- function of gradual increase in sound intensity, preventing effect of surprise in silent surroundings,
- possibility of creating wider networks of signaling devices operating synchronously,
- very low power consumption (100 dB @ 1 m),
- four sound patterns.
| S0 |
S1 |
Sound pattern |
| OFF |
OFF |
DIN 33 404 |
| OFF |
ON |
Police signal |
| ON |
OFF |
ISO 8201 |
| ON |
ON |
Fire service signal |
The cover of the signaling device is made of non-combustible plastic material, in which electronic components are embedded. In the cover of the SA-A2 acoustic alarm device, we have placed a power connector and a four-position micro-switch, with which it is possible to select the mode of operation of the signaling device, the sound pattern, as well as to enable or disable the gradual volume increase function. In addition, also a potentiometer enabling the adjustment of the signaling device volume is embedded in the device cover.
Opening
To open the alarm device you should: twist the shade to the left while holding the base, then move apart the shade and the base.
Closing
To close the alarm device you should adjust the markers, then assemble the device and twist it to the direction marked with an arrow (sequence shown in the drawing).
click to enlarge
Additional
Control
click to enlarge
| VR |
ON - enable |
OFF – disabled |
| M/S |
ON – Master mode |
OFF – Slave mode |
| No |
Mark |
Function |
| 1 |
M/S |
Master/Slave mode selection |
| 2 |
S0 |
sound pattern selection |
| 3 |
S1 |
sound pattern selection |
| 4 |
VR |
enable/disable gradual increase sound option |

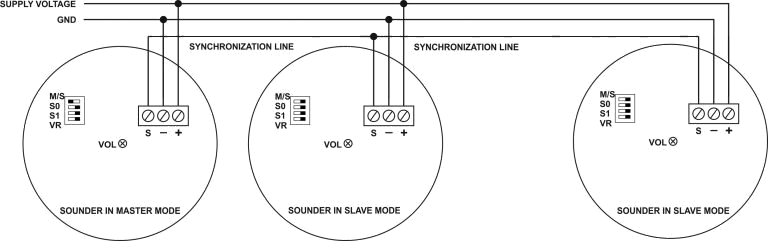

Control – devices network
SA-A2 enables creation of synchronously operating signalling devices network.
Synchronization of signalling devices takes place with use of additional line (S terminal of signalling device). During creation of synchronously operating networks one should remember about proper configuration of signalling devices operating mode (only one master device, the remaining signaling devices operate in slave mode).
In the event of a synchronization line failure (e.g. line break), alarm devices start working independently.
Dimensions
click to enlarge
