Description
USE
SO-Ad3 optical alarm device is generating red, orange and green warning (information) light. For use in automatic control systems and parking solutions for loading bays.
The alarm is compatible with docking systems and W2 products, such as MA-01, MA-02 and MA-03 automatic control modules.

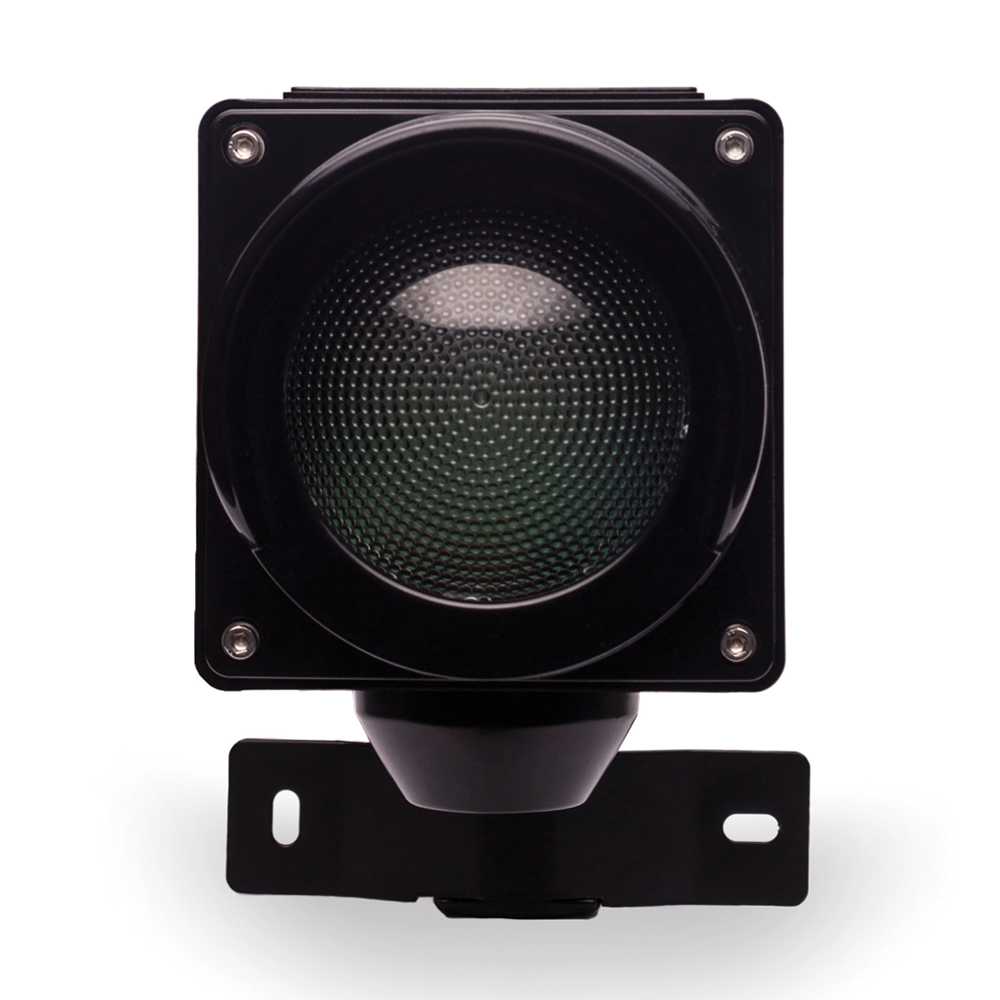

Construction
The SO-Ad3 optical alarm device is placed inside a plastic enclosure. LED diodes are used as the source of light. Enclosure with sunlight protection. The design of the device enables generating optical signals in three colours inside one enclosure.
The enclosure of the device is made of sturdy plastic and provides the IP54 protection rating – the SO-Ad3 optical alarm device can be used indoors and outdoors. The special design of the enclosure protects against sunlight interference with the optical signal. A large surface area of the light bowl ensures great visibility of the optical signal, even from large distances. The application of LED diodes as the light source contributes to the energy efficiency and reliability of the device.
Installation
Pole mounting (e.g. mounting to a pipe with the diameter of approx. 80 mm) or on a flat surface (e.g. wall).
Additional
Control
Controlling the signaling device is possible by connecting the control input to ground.
Terminals: GND , +, Red, Orange, Green
click to enlarge
Dimensions
click to enlarge
