SO-Wd11 beacon

Description

Use

SO-Wd11 optical alarm device is intended for optical signaling with LED diode pack in burglar alarm systems.

Construction

The alarm device consists of two main parts. The first of which is the right alarm device in a housing of non-combustible material. It contains supply voltage terminals and pins which allow you to select one of three different flashing frequencies or to turn on continuous lighting. The second part – a socket is an element which fixes the alarm device to the ceiling or wall by means of two screws and anchor pegs.

Opening

To open the alarm device you should: screw out the blocking screw, twist the shade to the left while holding the base, then move apart the shade and the base.

Closing

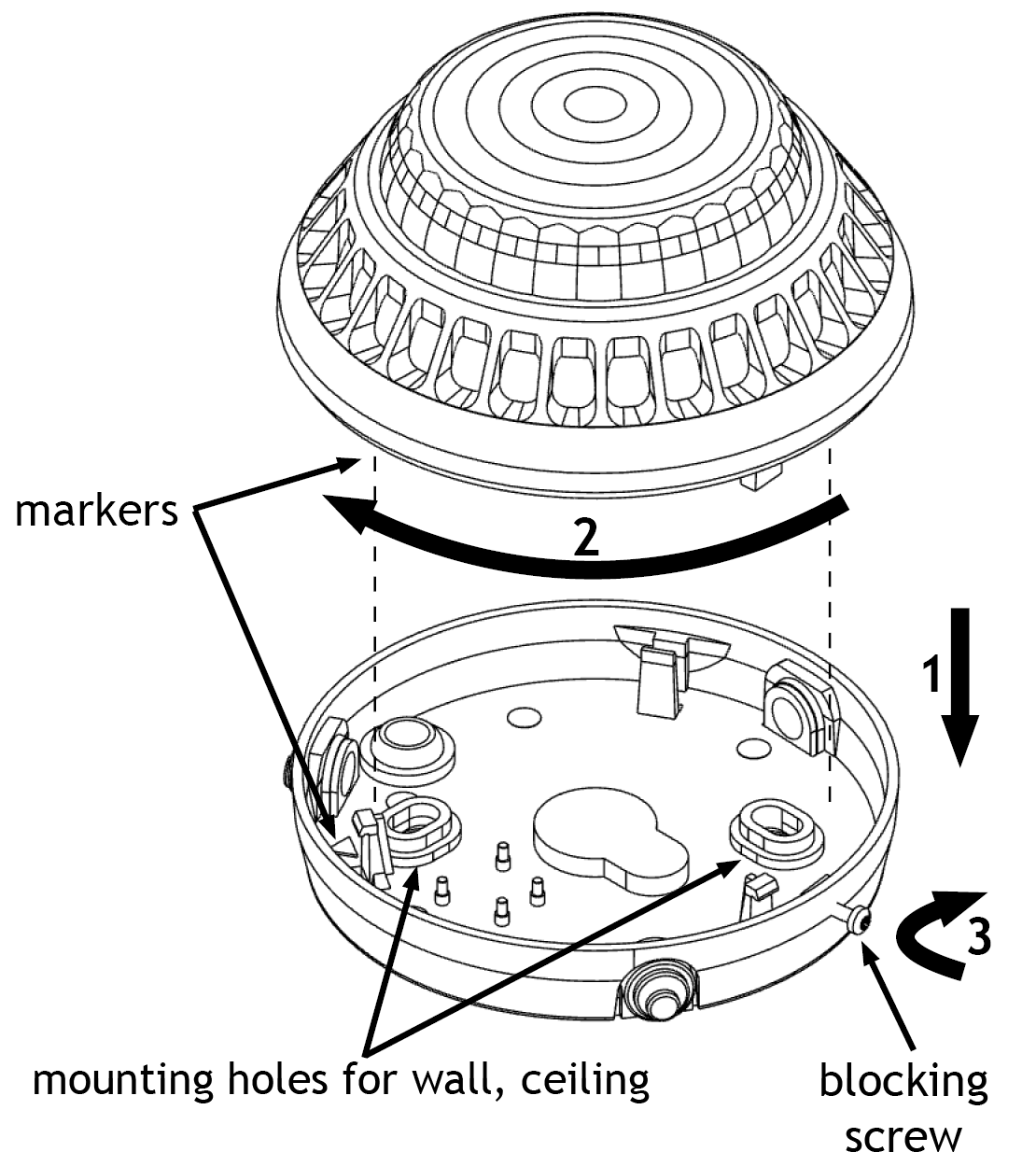

To close the alarm device adjust the markers, then assemble the device and twist it to the direction marked with an arrow (sequence shown in the drawing). After closing, screw in the blocking screw.

Notice The shade of the SO-Wd11 alarm device is available in the red or orange colour (at the customer’s request). When placing an order please give a desired colour marking respectively: SO-Wd11/C – a red shade, SO-Wd11/P –an orange shade.
